My Cup of Tea

Project Goals

  • Create a part that solves a beverage-related problem I have

  • Make it using only sheet acrylic

  • Be able to use it in everyday life

          (No acrylic glue)

The Problem

My beverage of choice is soda and I'll often drink way too much staying up to finish assignments.​

​

My hands also get cold very easily and having to pick up a cold can of soda only exacerbates the problem.

​

So I decided to design something that would let me keep my hands warm and drink soda at the same time.

Design Mood board
Cup MoodBoard.jpg

I made a mood board to help frame the problem and ideate solutions.​

Initial Sketches and Cad Work

I wanted the design to be

  • Elegant

  • Reliable

  • Easy to Use

Initial Shape Test

To make sure my design was functional, I first made it from cardboard.

The test was successful and I decided to move onto acrylic tests.

Acrylic Tests

First, I made a test cut of the cup and laser-cut different handle molds.

Test Prototypes
Interation Steps.png

These prototypes iterated upon handle size and comfort, the height of the top, and the securing mechanism. I tested adding different grips but they were either unreliable and prone to snapping, or uncomfortable, or both.

The final design has a robust securing mechanism that could withstand heavy use.

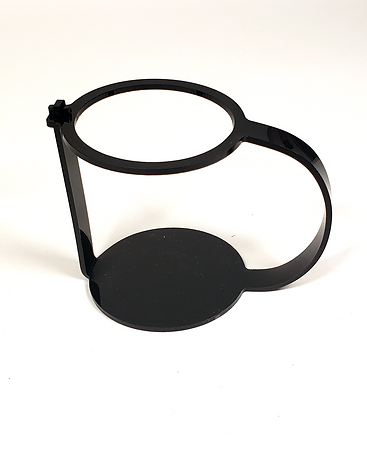

Final Design

The final design is a single piece of acrylic shaped using a heat gun that's secured with a very small incorporated a mechanical locking mechanism.

I chose this design because it looks very nice and inserting/removing soda cans is very easy.

To make sure it was reliable, I stress tested it with 3 days of regular use.
